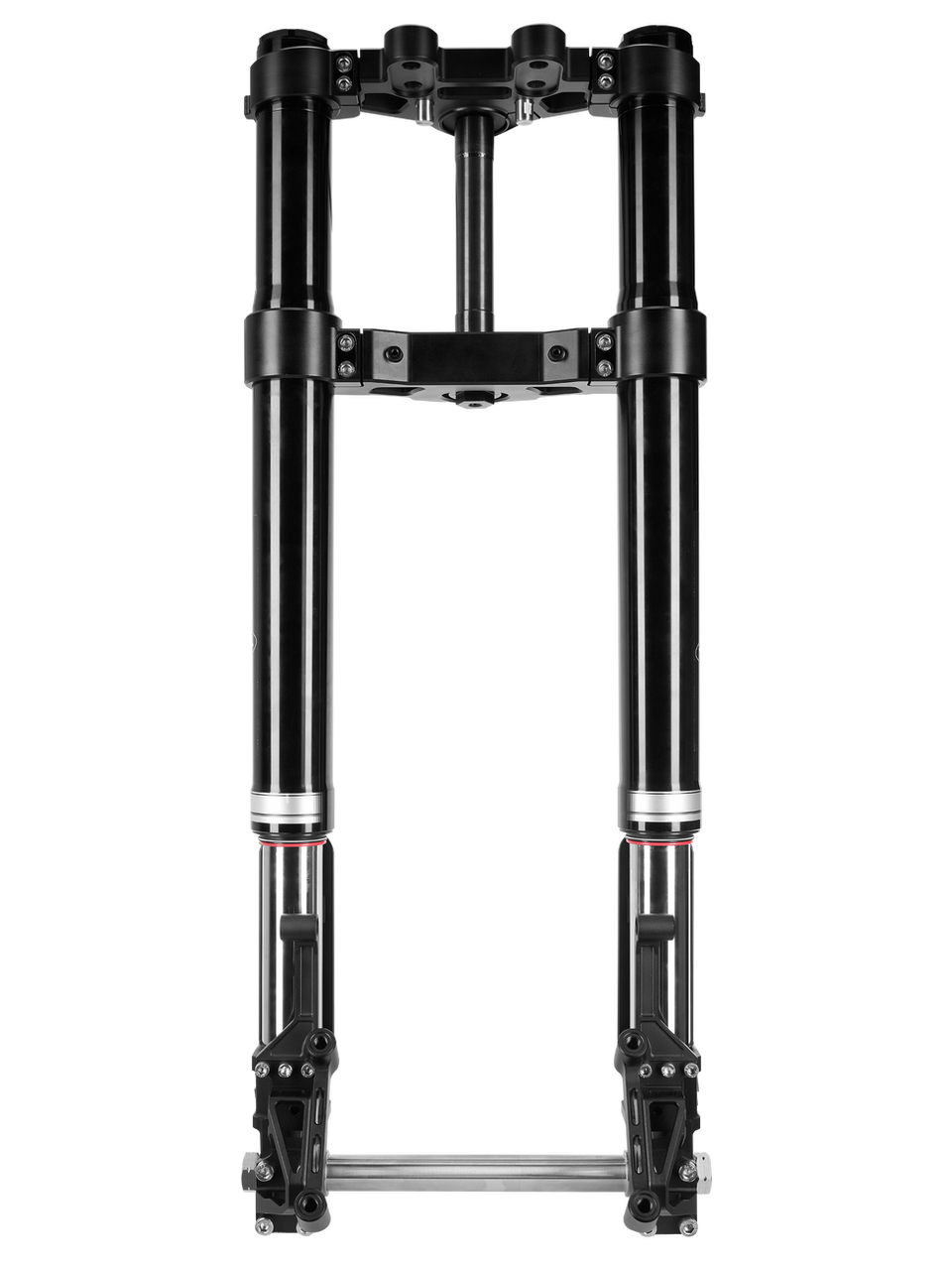

GLIDE43
for Harley-Davidson Touring
RACE PROVEN
- SCEPTER 25 -
SEALED CARTRIDGE DESIGN
Cr-Si SUPER LIGHTWEIGHT SPRING
The heritage RACINGBROS 2-way Scepter 25 sealed cartridge design delivers precise low-speed rebound with independent low-speed compression adjustment, taking performance to the next level.
25 mm PISTON
Super light weight, high strength Japan Cr-Si main spring.
EKONOL
®
DOUBLE BUSHING SYSTEM
- Improve smoothness
- Ensure bearing concentricity
- Minimize clearance
- Extend lifespan
- Enhance rigidity
Ø43 mm HIGH-TENSILE STRENGTH ALLOY STEEL
Provides exceptional rigidity and structural integrity under extreme braking and sustained high-load conditions.
6061-T6
BILLET CNC MACHINED FOR MAXIMUM RIGIDITY
With these combinations, this chassis brings exceptional strength-to-weight performance and delivers precise steering feedback!
DOUBLE BUSHING SYSTEM
EKONOL
®
PRESSURE RELEASE VALVE
JIS Cr-Si STEEL SPRING
Super High-Strength JIS G3560 Cr-Si steel spring with a preload adjuster. Preload adjustable range: 15 mm.
OPTIMIZED
DAMPING SYSTEM
Large piston design for optimal damping control and a separate IFP/coil-energized compression valve for superior performance.
SUPERFINISH SURFACE
TREATMENT
43 mm hard-chromed steel stanchions crafted from heat-treated 42CrMo4.
2-WAY ADJUSTABLE CARTRIDGE
With independent low-speed compression
and rebound adjustments:
Compression: 12 clicks.
Rebound: 17 clicks.
External air pressure release valve system on both legs for normalizing pressure with the ambient environment.

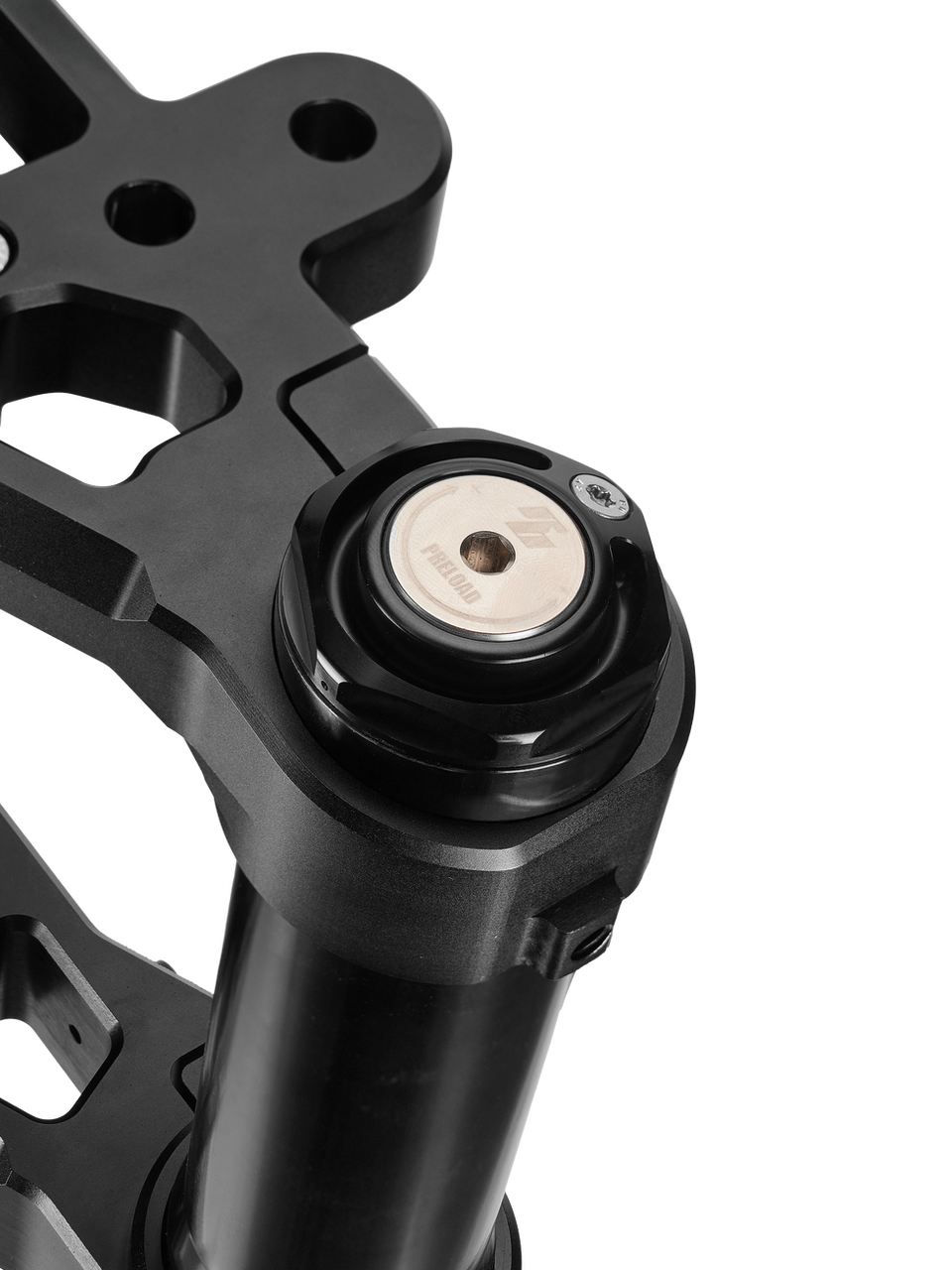

SPRING PRELOAD
15 mm wide-range spring preload adjustment.
Spring rates: 22 / 24 (N/mm)
WIDE-RANGE COMPRESSION ADJUSTMENT
Large piston design for optimal damping control and a separated IFP/coil-energized compression valve for superior performance.

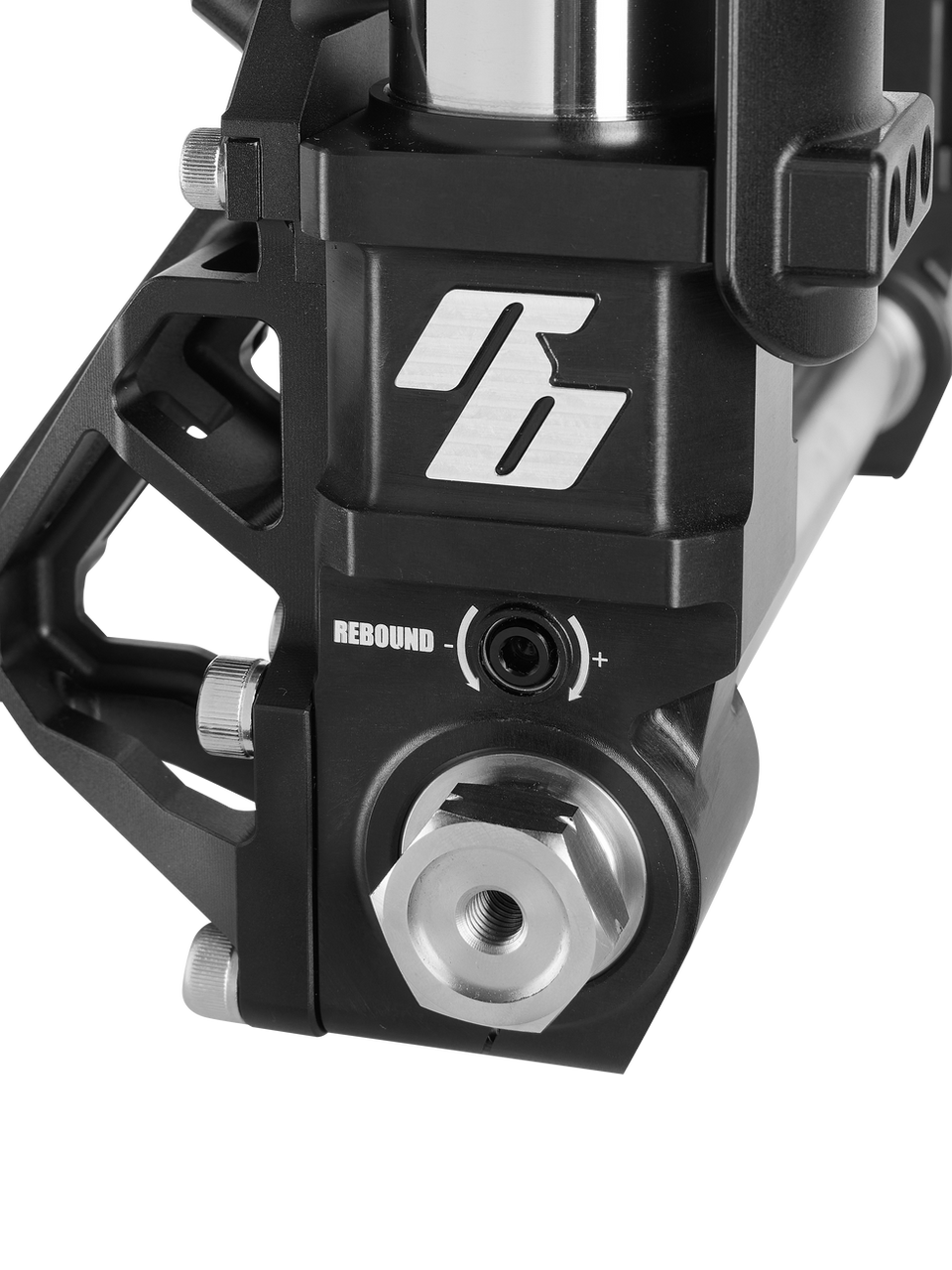

WIDE REBOUND ADJUSTMENT
Fully sealed cartridge design with wide rebound adjustment

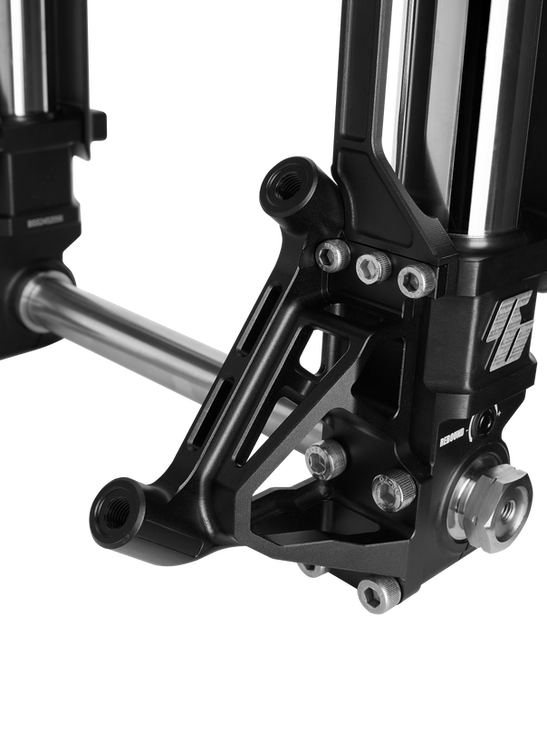

RADIAL BRAKE CALIPER MOUNT
Direct fit for a 108 mm braking system, delivering enhanced braking performance.
FEATURES / SPECS
◦ 42CrMo4 heat-treated inner tubes with superfinish surface
◦ JIS G3560 Cr-Si high-rigidity steel spring
◦ 2-way adjustable cartridge
◦ Independent pressure relief valve
◦ EKONOL double bushing system
◦ IFP*/coil-energized compression valve
* Internal Floating Piston
◦ Speed Adaptive Valving
---
Adjustment Range:
Preload: 15 mm
Compression: 12 clicks ±2
Rebound: 17 clicks ±2
Total length: 805 mm
Stanchion diameter: 43 mm
---
Spring Options:
22 N/mm (R0900405-1)
24 N/mm (R0900405-2)
COMPATIBILITY
Harley-Davidson
Roadglide 2014 - 2023
Roadglide 2023 (MAY) - 2025
Streetglide 2023 (MAY) - 2025
DIMENSIONS
