SCOUT43
for E-MOTO
Fork length
875
mm
Weight
8.3
kilograms
Stroke
270
mm
Total offset
55.5
mm
21"
Front wheel compatible
RACE PROVEN
- SCEPTER 25 -

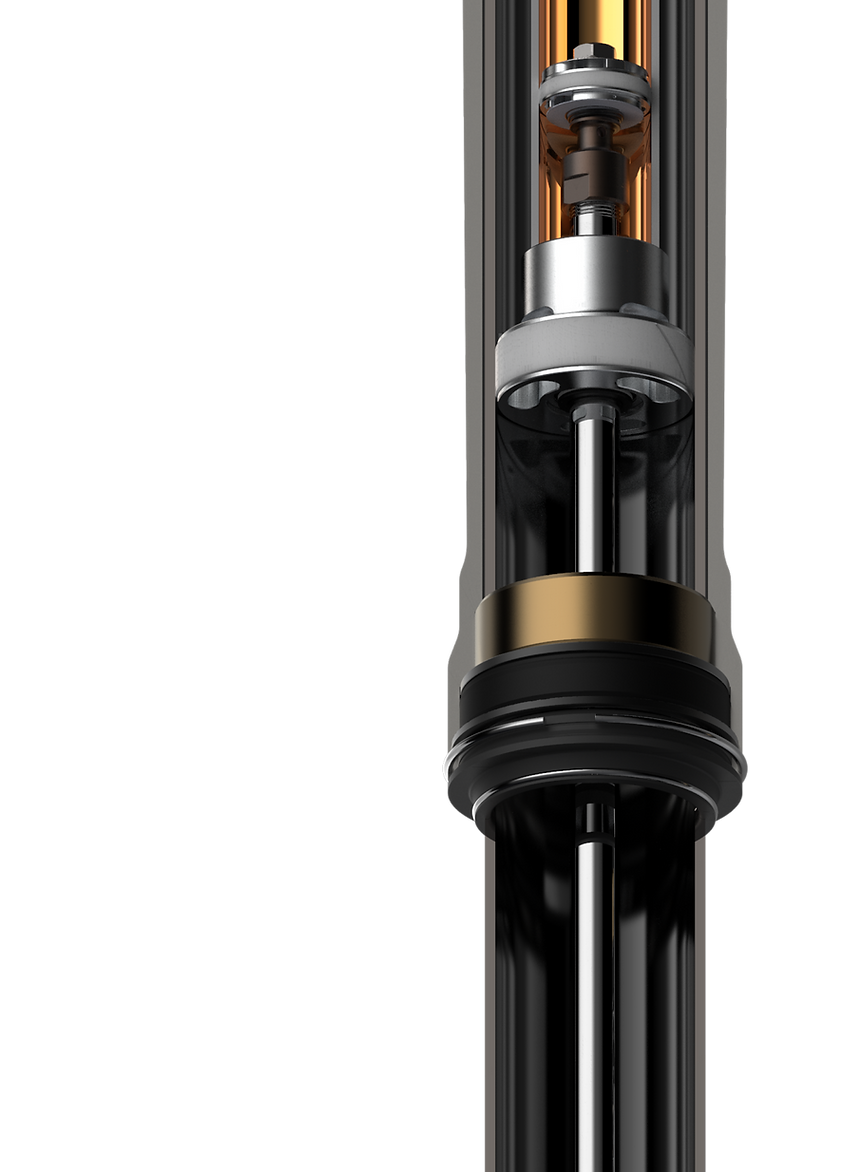

SEALED CARTRIDGE DESIGN
Cr-Si SUPER LIGHTWEIGHT SPRING
The heritage RACINGBROS 3-way Scepter 25 sealed cartridge design delivers precise low-speed rebound with independent high/low-speed compression adjustment, taking performance to the next level.
25 mm PISTON
Super light weight, high strength Japan Cr-Si main spring. In RACINGBROS, every gram counts. Lighter, Stronger, Faster~~
There is no compromise.
FINE-TUNED
RIDING
POSITION
UNLEASH
MAX
POTENTIAL
- Improve smoothness
- Ensure bearing concentricity
- Minimize clearance
- Extend lifespan
- Enhance rigidity

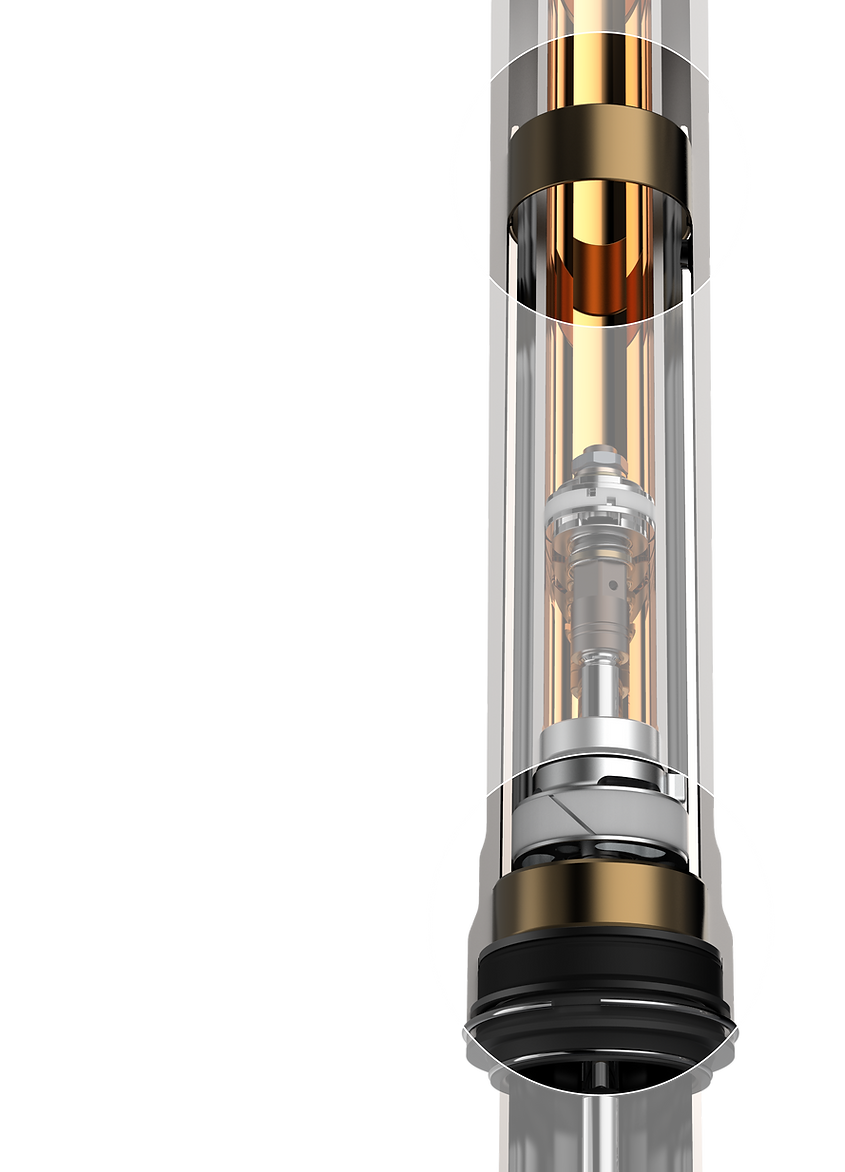

EKONOL
BUSHING
SYSTEM
®
Ø43 mm HIGH-TENSILE STRENGTH ALLOY STEEL
Provides superior rigidity and structural integrity under extreme braking and high-load e-moto conditions.
7050-T651
AEROSPACE-GRADE
STRENGTH
UPPER TUBE
With these combinations, this chassis brings exceptional strength-to-weight performance and delivers precise steering feedback!
6061-T6
FORGED TRIPLE CLAMPS
SPRING PRELOAD
No-hassle adjustability.
Dial it in fast for your weight, terrain, and the hard-hitting torque of high-performance e-motos.
Spring rates: 8 / 9 / 10 / 11 (N/mm)
21 CLICKS REBOUND ADJUSTMENT
Seal Cartridge prevents contamination and ensures consistent damping performance when you push to the limit. Fine tuned rebound adjustment enables precise suspension control on every terrain.
HIGH/LOW-SPEED COMPRESSION ADJUSTMENT
Independent HI/LO compression adjustability optimizes traction, cornering stability, and impact absorption through any terrain you conquer
12 CLICKS HYDRAULIC
BOTTOM-OUT ADJUSTMENT
Adjustable HBO controls end-stroke energy absorption to prevent harsh impacts during extreme landings and aggressive riding.
DISK BRAKE MOUNT
Direct fit with a real MX braking system brings your braking power to the next level. The best upgrade choice for your bike!
FEATURES / SPECS
◦ Ø43mm high-tensile (>1200MPa) alloy steel stanchions
with super-polished finish
◦ Plug-and-Play Upgrade: direct OEM swap, fits stock brakes & fender (stock caliper adaptor included)
◦ Precision-forged 6061-T6 triple clamps & fork bottoms
◦ 7050-T651 super high strength upper tubes
◦ 3-way sealed cartridge damping system
◦ 10 mm adjustable spring preload
◦ Hydraulic bottom-out control
◦ Pressure relief valves
◦ 270 mm travel
---
Adjustment Range:
Preload: 10 mm
Wide-range low-speed rebound: 21 clicks
High-speed compression: 12 clicks
Low-speed compression: 16 clicks
Hydraulic bottom-out: 12 clicks
※ Settings may vary. Refer to actual product.
COMPATIBILITY
Sur-Ron
Ultra-Bee
and...
MORE TO COME!
DIMENSIONS
