SHICANE HLR REMOTE
for Metric bikes
ADVANCED LIGHTWEIGHT DESIGN
SHICANE is form the "CHICANE" on racing circuits, you could see riders are making them a prime location for overtaking.
SHICANE is high performance suspension from your daily commute to race track. A reliable, durable weapon on every chicane.
Ⓐ ALUMINUM ALLOY PISTONS
Precisely CNC-machined pistons from high-quality 7-series aluminum ensure consistent damping.
Ⓑ BLADDER TECH
RACINGBROS features bladder oil/gas technology to enhance shock sensitivity, with an extra-large reservoir volume ensuring the most stable and comfortable riding experience.
Ⓒ CO-AXIAL SYSTEM Rev up your riding adventure with cutting-edge Co-axial High/Low-Speed Compression Damping System.
REVOLVER PRELOAD ADJUSTER
(OPTIONAL)
The REVOLVER Hydraulic Preload Adjuster allows you to adjust preload settings at any time—no tools, seat, or side cover removal required.
For models equipped with the REVOLVER system, please refer to the link.
FEATURES / SPECS
◦ JIS G3560 Cr-Si high-rigidity steel spring, 5–8% lighter than standard springs
◦ Co-axial damping system
◦ 2,500 psi hose with CNC stainless fittings
◦ 14 mm high-rigidity super-chrome shaft
◦ Bladder Oil/Gas separation tech
◦ 6061-T6 CNC-machined damper body
◦ 7075-T6 CNC-machined piston
◦ MIT high-precision spherical bearings
◦ Adjustable spring preload
◦ Adjustable ( +10 mm )
◦ Speed Adaptive Valving
---
Adjustment Range:
Wide-range low-speed rebound: 24 clicks ±3
High-speed compression: 24 clicks ±3
Low-speed compression: 24 clicks ±3
※ Settings may vary. Refer to actual product.

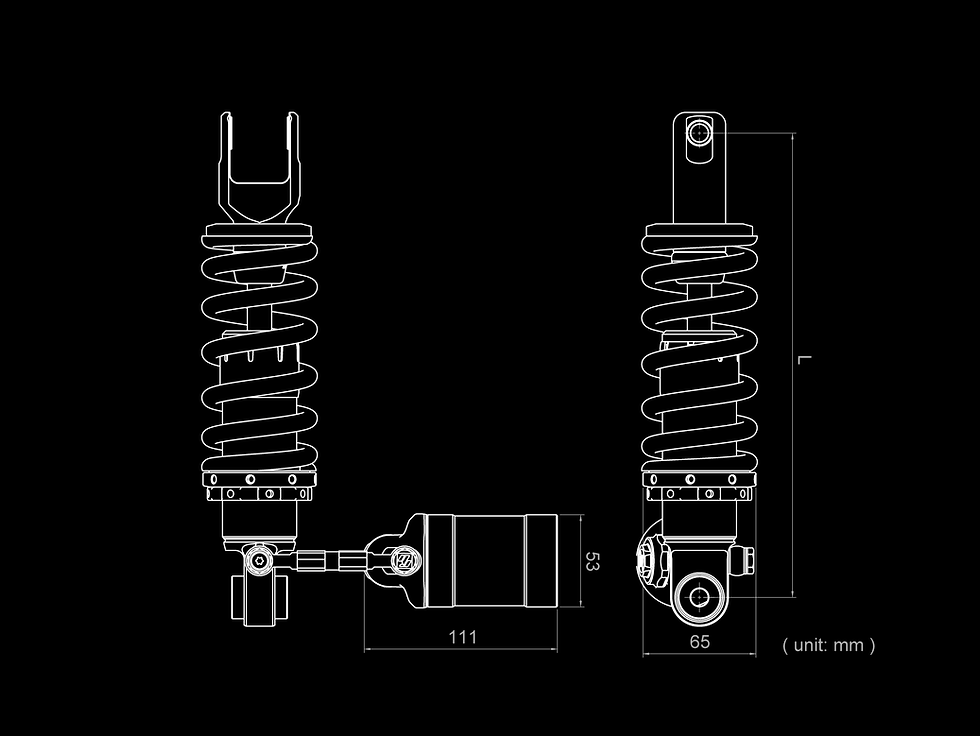

DIMENSION DRAWING
The eye-to-eye length (marked as 'L') and mounting configurations may vary depending on the vehicle’s make, model, year, and customization. All products are custom-made by each distributor. Please consult your distributor to confirm the correct specifications for your setup.
