SCOUT43
for E-MOTO
Fork length
875
mm
Weight
8.3
kilograms
Stroke
270
mm
Total offset
55.5
mm
21"
Front wheel compatible
RACE PROVEN
- SCEPTER 25 -
SEALED CARTRIDGE DESIGN
Cr-Si SUPER LIGHTWEIGHT SPRING
The heritage RACINGBROS 3-way Scepter 25 sealed cartridge design delivers precise low-speed rebound with independent high/low-speed compression adjustment, taking performance to the next level.
25 mm PISTON
Super light weight, high strength Japan Cr-Si main spring. In RACINGBROS, every gram counts. Lighter, Stronger, Faster~~
There is no compromise.
FINE-TUNED
RIDING
POSITION
UNLEASH
MAX
POTENTIAL
- Improve smoothness
- Ensure bearing concentricity
- Minimize clearance
- Extend lifespan
- Enhance rigidity
EKONOL
BUSHING
SYSTEM
®
Ø43 mm HIGH-TENSILE STRENGTH ALLOY STEEL
Provides superior rigidity and structural integrity under extreme braking and high-load e-moto conditions.
7050-T651
AEROSPACE-GRADE
STRENGTH
UPPER TUBE
With these combinations, this chassis brings exceptional strength-to-weight performance and delivers precise steering feedback!
6061-T6
FORGED TRIPLE CLAMPS

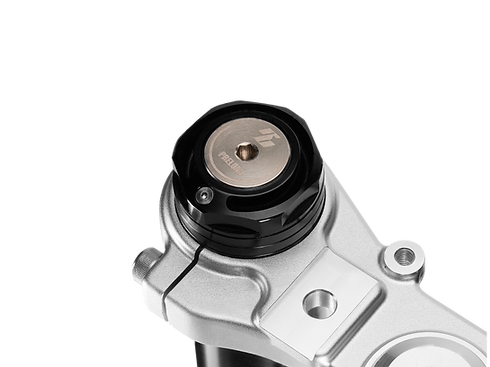

SPRING PRELOAD
No-hassle adjustability.
Dial it in fast for your weight, terrain, and the hard-hitting torque of high-performance e-motos.
Spring rates: 8 / 9 / 10 / 11 (N/mm)

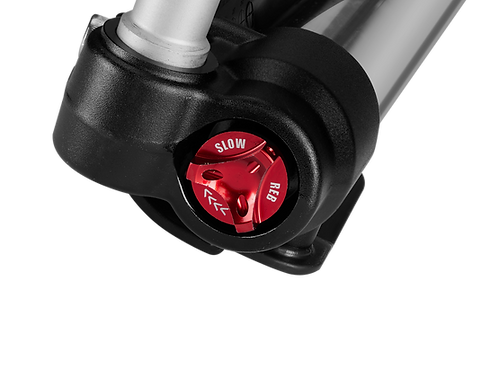

21 CLICKS REBOUND ADJUSTMENT
Seal Cartridge prevents contamination and ensures consistent damping performance when you push to the limit. Fine tuned rebound adjustment enables precise suspension control on every terrain.

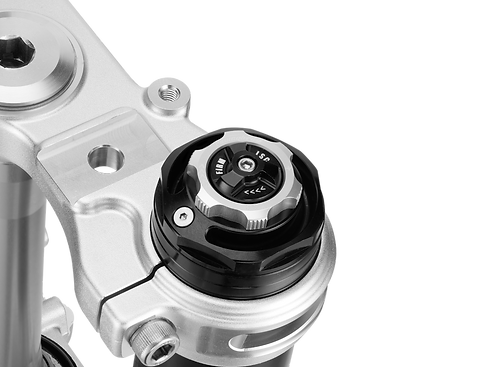

HIGH/LOW-SPEED COMPRESSION ADJUSTMENT
Seal Cartridge prevents contamination and ensures consistent damping performance when you push to the limit. Fine tunned rebound adjustment enables precise suspension control on every terrain.
12 CLICKS HYDRAULIC
BOTTOM-OUT ADJUSTMENT
Adjustable HBO controls end-stroke energy absorption to prevent harsh impacts during extreme landings and aggressive riding.
DISK BRAKE MOUNT
Direct fit with a real MX braking system brings your braking power to the next level. The best upgrade choice for your bike!
功能FEATURES / 規格SPECS
◦ Ø43mm high-tensile (>1200MPa) alloy steel stanchions
with super-polished finish
◦ Plug-and-Play Upgrade: direct OEM swap, fits stock brakes & fender
◦ Precision-forged 6061-T6 triple clamps & fork bottoms
◦ 7050-T651 super high strength upper tubes
◦ 3-way sealed cartridge damping system
◦ 10 mm adjustable spring preload
◦ Hydraulic bottom-out control
◦ Pressure relief valves
◦ 270 mm travel
---
Adjustment Range:
Preload: 10 mm
Wide-range low-speed rebound: 21 clicks
High-speed compression: 12 clicks
Low-speed compression: 16 clicks
Hydraulic bottom-out: 12 clicks
※ Settings may vary. Refer to actual product.
COMPATIBILITY
Sur-Ron
Ultra-Bee
and...
MORE TO COME!
DIMENSIONS
